Lokus Standalone controller
STANDALONE Access Controller

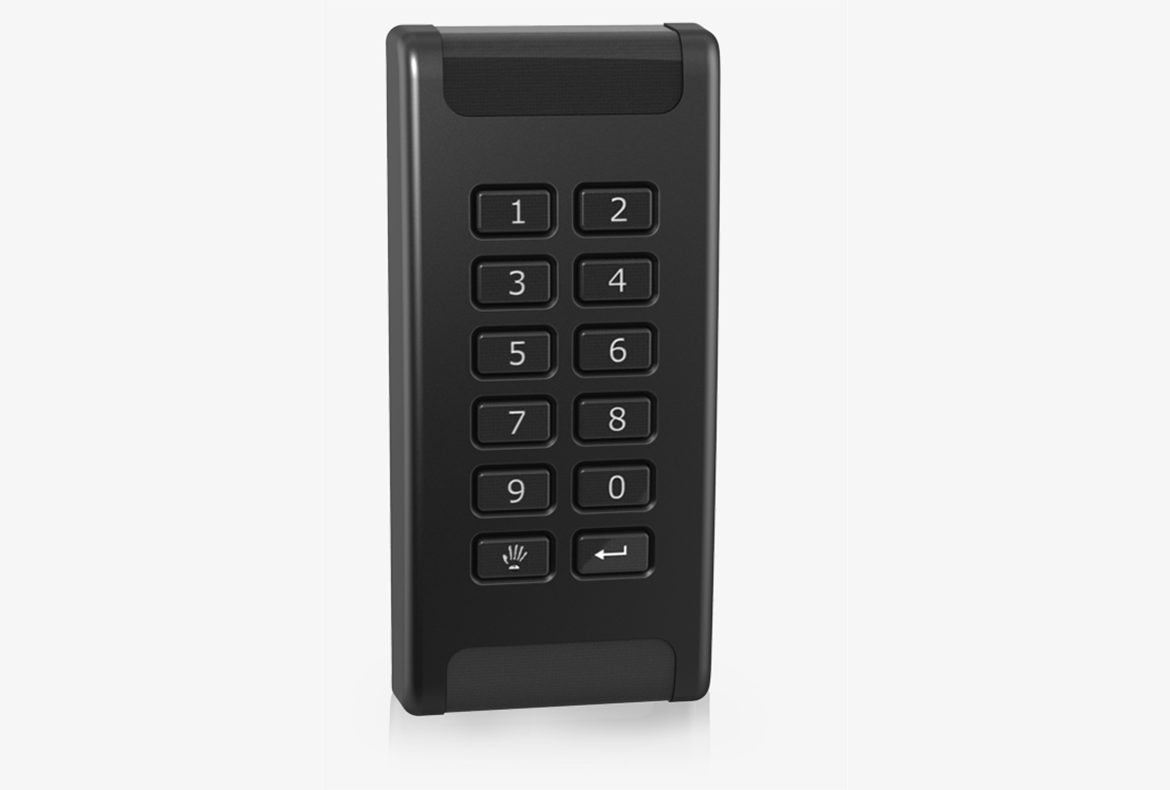

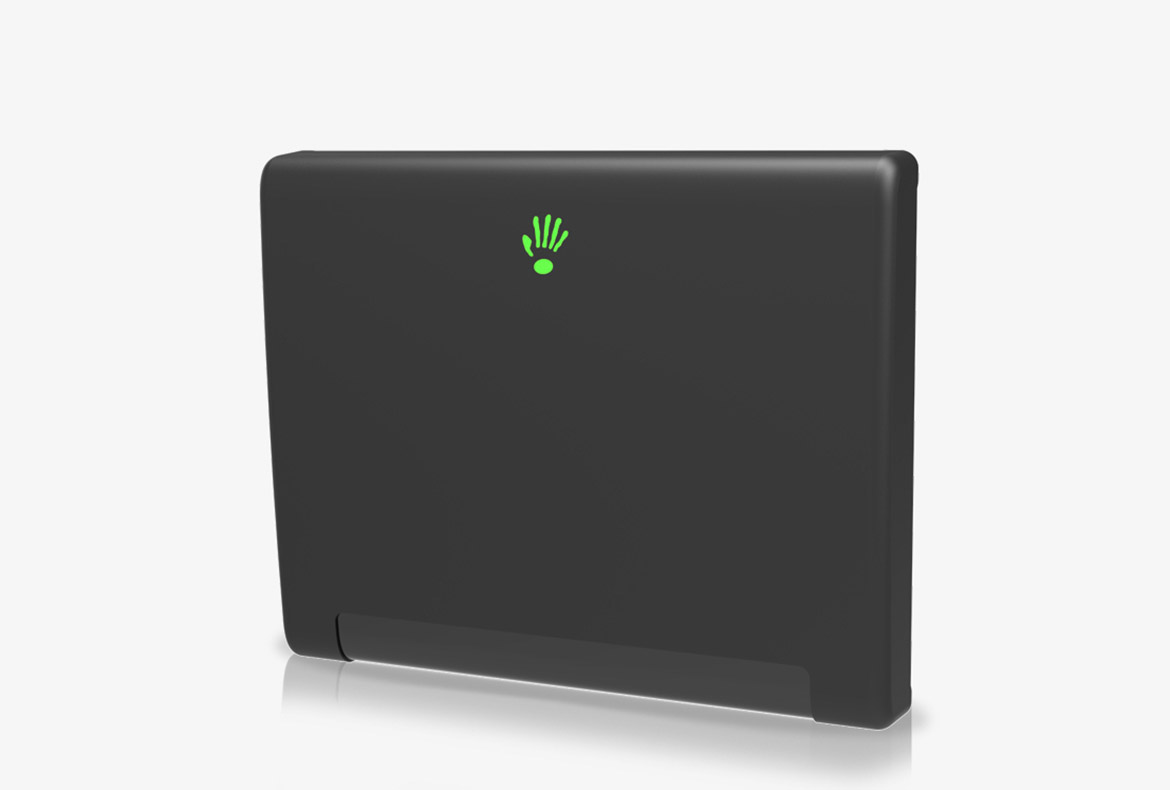

The Lokus Standalone controller A and O with integrated card reader and Lokus K with numeric keypad are used in basic systems for access control. They can be used for opening doors, barriers, gates, lifts, for switching on/off alarm systems, etc. They can also be converted to an advanced receiver with 26-bit Wiegand output nad an extended reading range of up to 20 cm.
FEATURES
Integrated contactless card reader with 125 kHz reading frequency
Can store up to 100 users
Operating temperature: from -20 °C to +70 °C
IP65 – suitable for outdoor installation

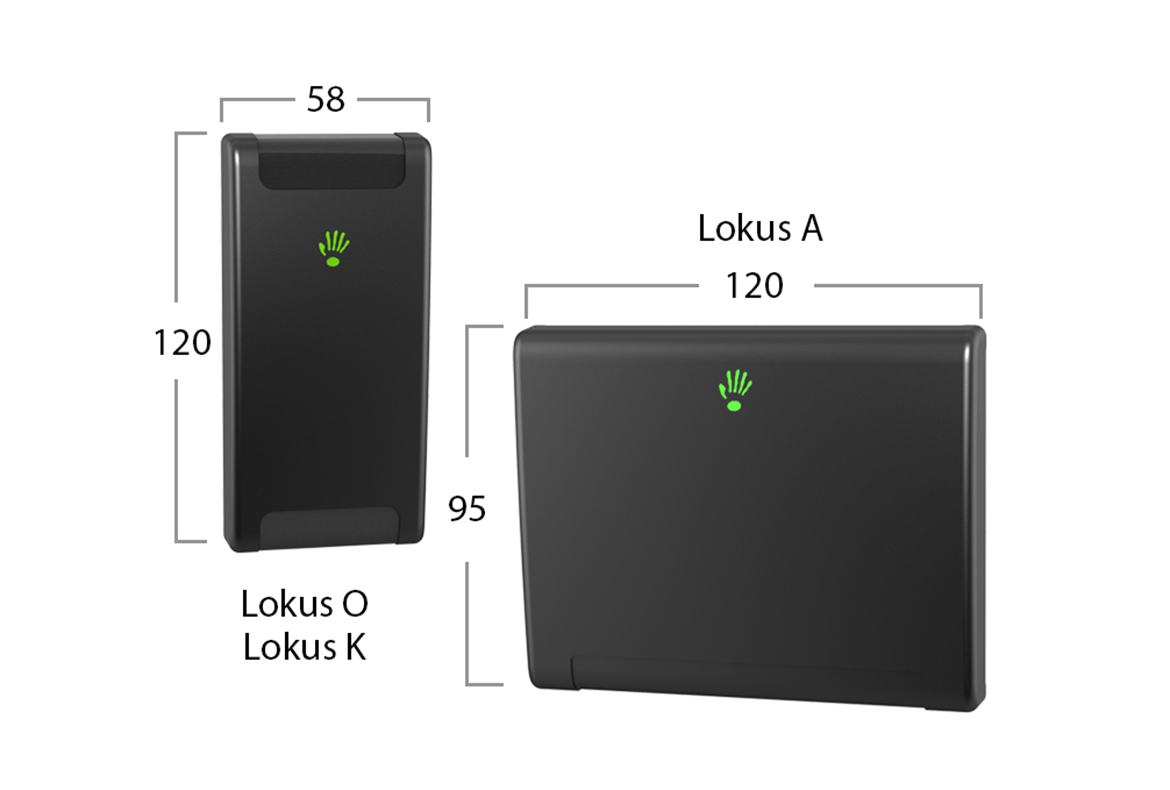

Dimensions: 120 x 95 x 15 mm (Lokus A),
58 x 120 x 15 mm (Lokus O),
58 x 120 x 18 mm (Lokus K)
Reading range: from up to 10 or 20 cm
Status signalization with controller LED and buzzer signals
MODELS
| LOKUS A-1-B | In A-B box, 125 kHz |
| LOKUS O-1-B | In O-B box, 125 kHz |
| LOKUS K-1-B | In K-B box, with keypad, 125 kHz |
Download
| Datasheet Lokus | Download |
