Regis F
T&A CONTROLLER, ACCESS CONTROLLER OR STANDALONE ACCESS CONTROLLER
Controller with fingerprint reader

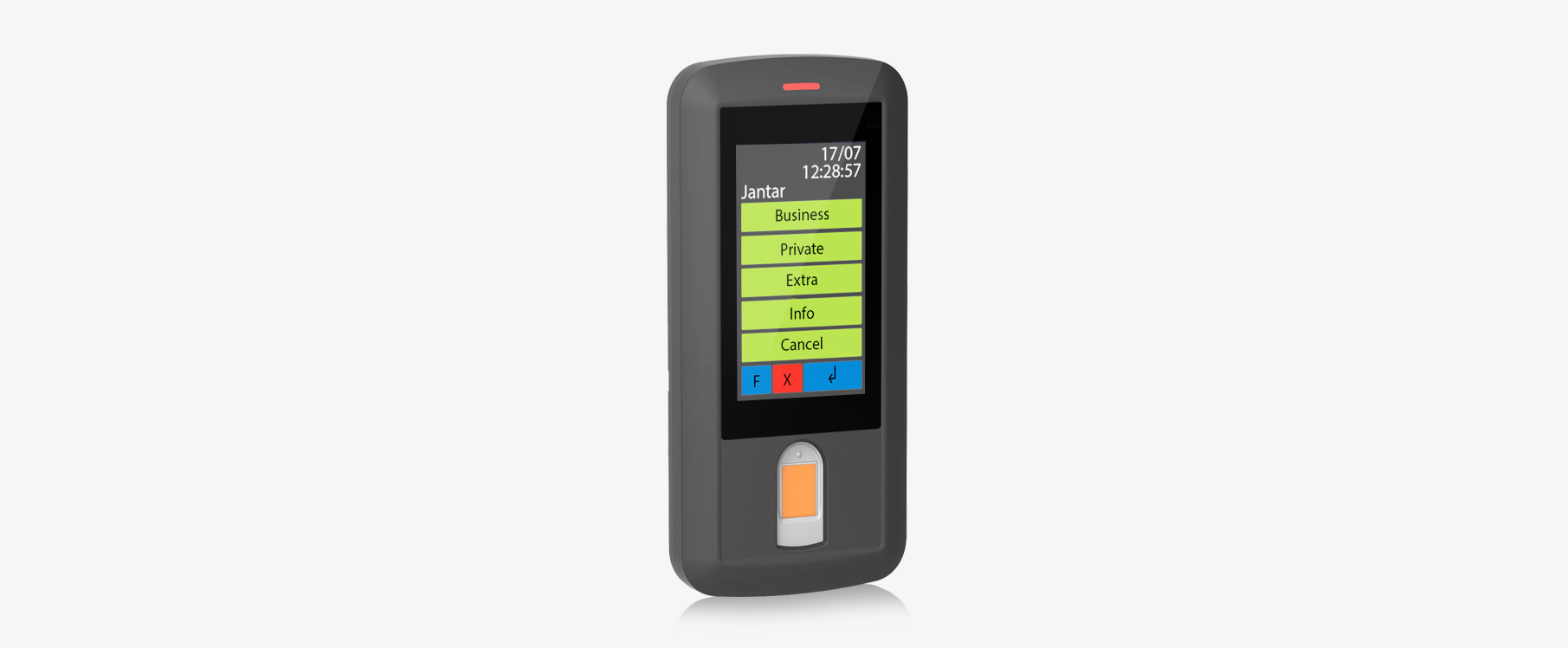

Regis F is a powerful access or T&A controller with a full-color backlit 3” LCD touch screen and fingerprint reader. Its keypad layout can be completely customised and it comes equipped with a built-in card reader with a 125 kHz or 13,56 MHz reading frequency. The Regis S can store up to 30.000 users and 100.000 events.
FEATURES
- Can be used as an access controller, T&A controller or standalone controller
- Built-in fingerprint reader, can store up to 500 fingerprints
- Built-in card reader for 125 kHz or 13,56 MHz reading frequency
- Can store up to 30.000 users and 100.000 events
- Operating temperature: from -20 °C to +70 °C
- IP21 – suitable for indoor installation
- Dimensions: 73 x 143 x 22 mm
- Reading range up to 10 cm
- Status signalization with controller buzzer signals and button color change
Full-color screen
Regis F has a full-color backlit 3” LCD touch screen. It has multi-keypad layout support and the keypad appearance can be additionally customised with the Codeks Keypad Editor application.
Built-in card reader
Regis F is equipped with a built-in card reader with a reading frequency of 125 kHz or 13.56 MHz.
Powerful hardware
With great power comes great capability. Let us just name some: FLASH memory for up to 30.000 and 100.000 events, RS485 and TCP/IP communication support, accelerometer (anti-tamper alarm) and optional GSM / WiFi interface, Real Time Clock with battery back-up, fingerprint reader, etc.
Low consumption
The all-new Jantar-designed hardware architure is powerful but not power hungry. With power consumption 3W (in ECO mode: 2W) and operating temperature from -20°C to +70°C is really a remarkable piece of hardware architecture.
Ordering codes
| Code | Specification |
|---|---|
| REGIS F-1-B | In F-S box, 125 kHz |
| REGIS F-3-B | In F-S box, 13,56 MHz |
Download
| Datasheet Regis F | Download |
